Copper Conductor XLPE Insulated Armoured PVC Sheathed Power Cable – STA or SWA Options for 0.6/1kV to 35kV Industrial and Underground Applications | HANYI Cable
Product Description
The Cu / XLPE / STA or SWA / PVC cable is a premium, heavy-duty power cable designed for dependable power transmission in low, medium, and high-voltage systems.

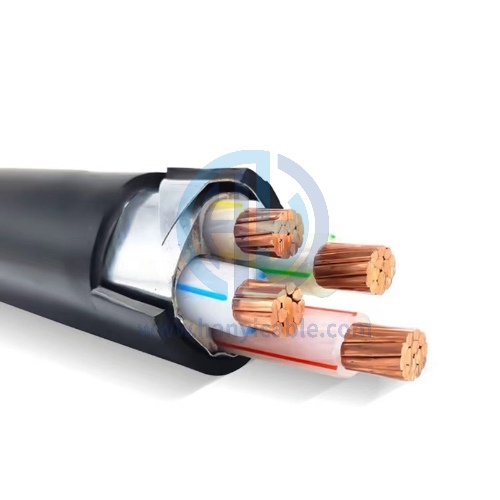

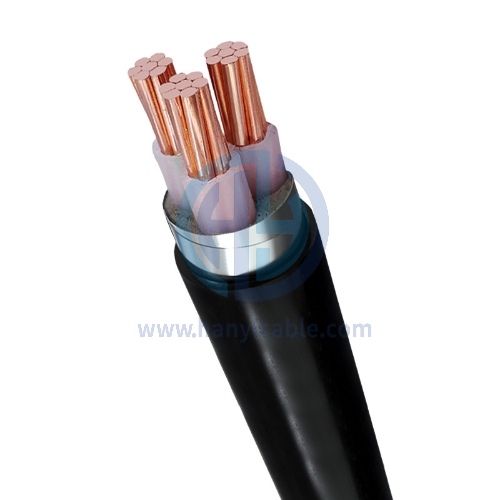

Construction & Features:
Conductor: High-purity copper for superior electrical conductivity and low power loss.
Insulation: Cross-linked polyethylene (XLPE) for outstanding thermal resistance (90°C continuous), high dielectric strength, and excellent aging performance.
Armouring:
STA (Steel Tape Armour) – optimal for fixed installations and direct burial, providing excellent crush resistance.
SWA (Steel Wire Armour) – offers enhanced tensile and impact resistance, ideal for mechanically demanding environments.
Outer Sheath: PVC (Polyvinyl Chloride) for added protection against moisture, chemicals, abrasion, and UV exposure.
Available in voltage ratings 0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, and 25/35kV, this cable is suitable for underground, outdoor, and industrial power distribution.
Specifications
| Parameter | Description |
|---|---|
| Conductor Material | Copper – IEC 60228 Class 1 or 2 |
| Insulation Material | XLPE (Cross-linked Polyethylene) |
| Armouring Type | STA (Steel Tape Armour) or SWA (Steel Wire Armour) |
| Outer Sheath | PVC (Polyvinyl Chloride) |
| Voltage Ratings | 0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, 25/35kV |
| Temperature Rating | 90°C operating / 250°C short-circuit |
| Standards Compliance | IEC 60502-1 (LV) / IEC 60502-2 (MV/HV) |
| Installation | Direct burial, cable trays, ducts, outdoor fixed wiring |
| Applications | Power distribution, substations, heavy industry, renewable energy, infrastructure projects |
5000m, 1000m, 100m upon Size& length request
