Copper Conductor XLPE Insulated PVC Sheathed Power Cable – 0.6/1kV to 25/35kV High-Performance Electrical Cable | HANYI Cable

The Copper Conductor XLPE Insulated PVC Sheathed Power Cable combines high conductivity with mechanical durability, offering reliable performance for low to high-voltage applications. Built to IEC standards, it is ideal for both indoor and outdoor fixed installations where long service life and electrical efficiency are required.

Description Package Information Inquiry

Product Description

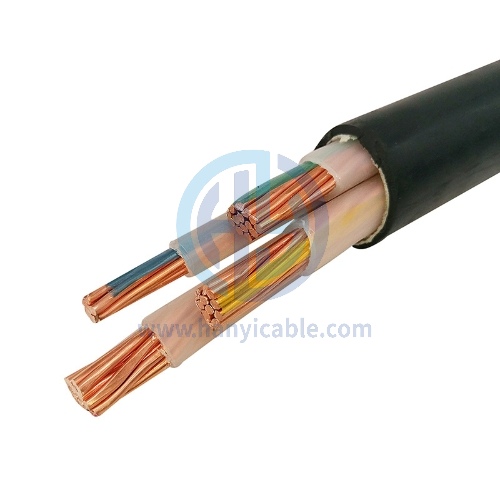

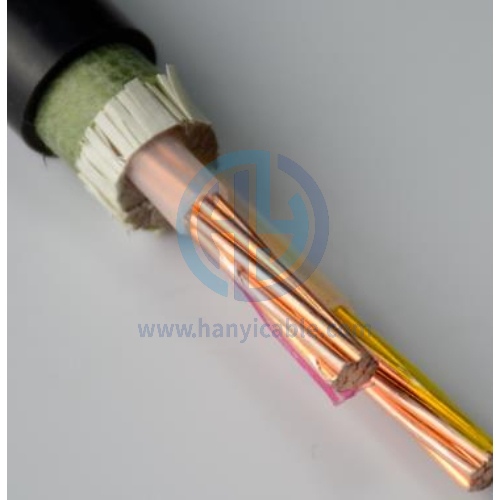

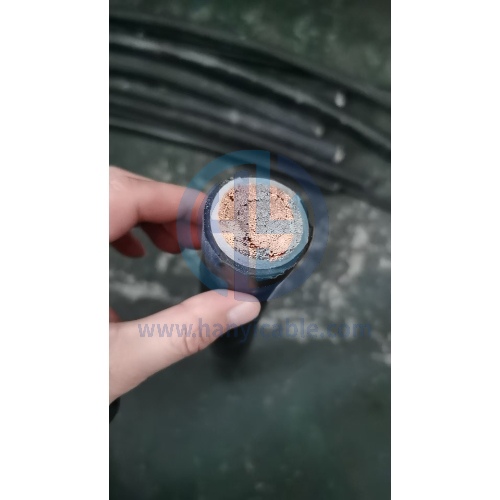

The Cu / XLPE / PVC power cable is a high-quality, durable cable designed for safe and efficient power transmission across low, medium, and high-voltage networks.

Structure & Features:

Conductor: High-purity copper for maximum electrical conductivity and low power loss.
Insulation: Cross-linked polyethylene (XLPE) provides excellent thermal resistance (90°C continuous operation), high dielectric strength, and extended service life.
Sheath: PVC (Polyvinyl Chloride) outer sheath offers protection against moisture, abrasion, chemicals, and UV exposure.

Voltage Grades: Available in 0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, and 25/35kV, making it suitable for a wide range of utility, industrial, renewable energy, and infrastructure projects.

Specifications

Parameter	Description
Conductor Material	Copper (solid or stranded) – IEC 60228 Class 1 or 2
Insulation Material	XLPE (Cross-linked Polyethylene)
Outer Sheath	PVC (Polyvinyl Chloride)
Voltage Ratings	0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, 25/35kV
Temperature Rating	90°C operating / 250°C short-circuit
Standards Compliance	IEC 60502-1 (LV), IEC 60502-2 (MV/HV)
Installation	In air, ducts, trays, or direct burial
Applications	Power distribution, industrial plants, substations, renewable energy, underground feeders

5000m, 1000m, 100m upon Size& length request
