Aluminium Conductor XLPE Insulated Steel Tape Armoured PVC Sheathed Power Cable – 0.6/1kV to 25/35kV Heavy-Duty Underground & Industrial Cable | HANYI Cable
Product Description

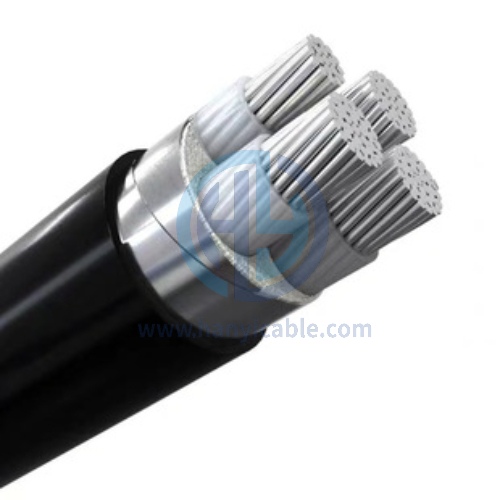

The AL / XLPE / STA / PVC power cable is a heavy-duty, armoured single-core or multi-core cable designed for safe and reliable power transmission in low, medium, and high-voltage networks.
It features:
Conductor: High-conductivity aluminium for a lightweight and cost-efficient solution compared to copper.
Insulation: Cross-linked polyethylene (XLPE) for excellent thermal resistance (90°C continuous operation), high dielectric strength, and long service life.
Armouring: Steel Tape Armour (STA) provides superior mechanical protection against impact and rodent damage, ideal for direct burial or harsh environments.
Sheath: Extruded PVC outer sheath for additional protection against moisture, chemicals, and abrasion.
Available in multiple voltage grades: 0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, and 25/35kV, making it suitable for a wide range of utility, industrial, mining, and infrastructure applications.
Specifications
| Parameter | Description |
|---|---|
| Conductor Material | Aluminium (solid or stranded) – IEC 60228 Class 1 or 2 |
| Insulation Material | XLPE (Cross-linked Polyethylene) |
| Armouring | Steel Tape Armour (STA) |
| Outer Sheath | PVC (Polyvinyl Chloride) |
| Voltage Ratings | 0.6/1kV, 6/10kV, 8.7/15kV, 12/20kV, 25/35kV |
| Temperature Rating | 90°C operating / 250°C short-circuit |
| Standards Compliance | IEC 60502-1 (LV), IEC 60502-2 (MV/HV) |
| Installation | Direct burial, ducts, outdoor, indoor, fixed installations |
| Applications | Power distribution, substations, industrial plants, renewable energy, underground feeders |
5000m, 1000m, 100m upon Size& length request
