Aluminium Conductor XLPE Insulated Single Core Power Cable – 0.6/1kV & 6/10kV Medium Voltage Electrical Cable | HANYI Cable
Product Description

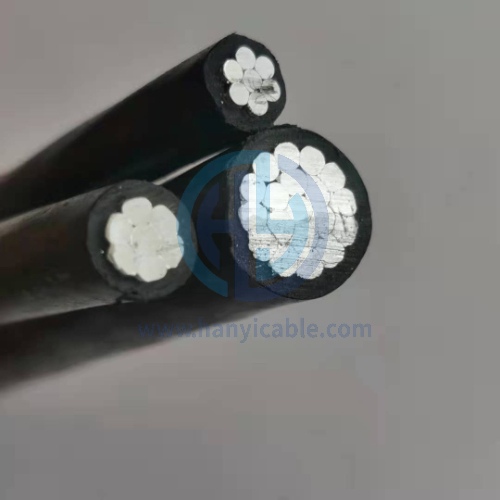

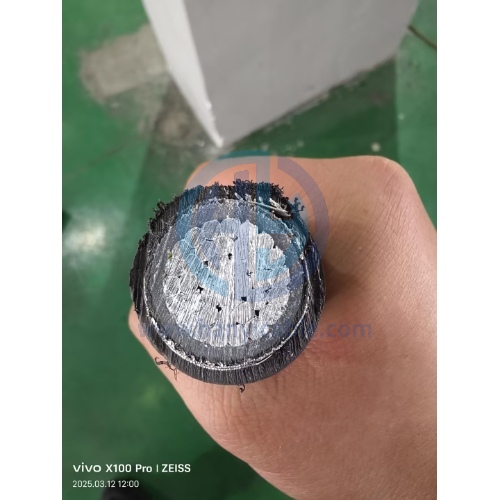

This Aluminium Conductor XLPE Insulated Single Core Cable is designed for reliable power distribution in low and medium voltage networks. The cable features a high-conductivity aluminium conductor, cross-linked polyethylene (XLPE) insulation, and optional protective sheathing, providing excellent electrical performance and mechanical strength.
Voltage Grades: Available in 0.6/1kV (Low Voltage) and 6/10kV (Medium Voltage) designs.
Conductor: Solid or stranded aluminium, class 2 or 1 to IEC 60228, lightweight and cost-effective compared to copper.
Insulation: XLPE for superior thermal resistance up to 90°C operating temperature and enhanced electrical integrity.
Sheath (optional): PVC or PE outer sheath for environmental and mechanical protection.
These cables are ideal for fixed installation in power distribution networks, industrial plants, renewable energy systems, and underground or outdoor installations.
Specifications
| Parameter | 0.6/1kV Single Core | 6/10kV Single Core |
|---|---|---|
| Conductor Material | Aluminium | Aluminium |
| Conductor Structure | Solid or stranded (Class 2) | Stranded (Class 2) |
| Insulation Material | XLPE | XLPE |
| Voltage Rating | 0.6/1kV | 6/10kV |
| Temperature Rating | 90°C (operating), 250°C (short-circuit) | 90°C (operating), 250°C (short-circuit) |
| Standards Compliance | IEC 60502-1 | IEC 60502-2 |
| Installation Type | Fixed indoor/outdoor, buried, in conduit | Fixed indoor/outdoor, buried, in conduit |
5000m, 1000m, 100m upon Size& length request
