UL2516 Multi-Conductor PVC Insulated Flexible Shielded Control Cable – 300V, 80°C| HANYI Cable
Detailed Description

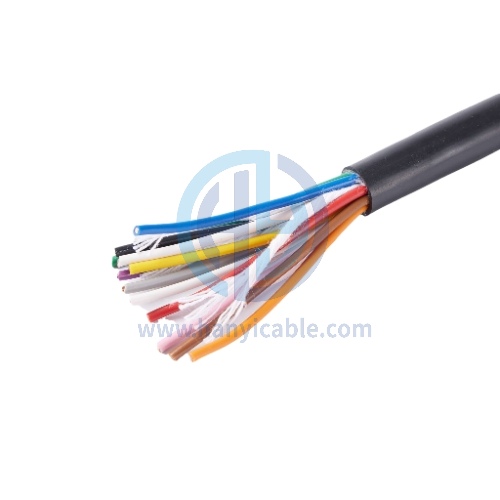

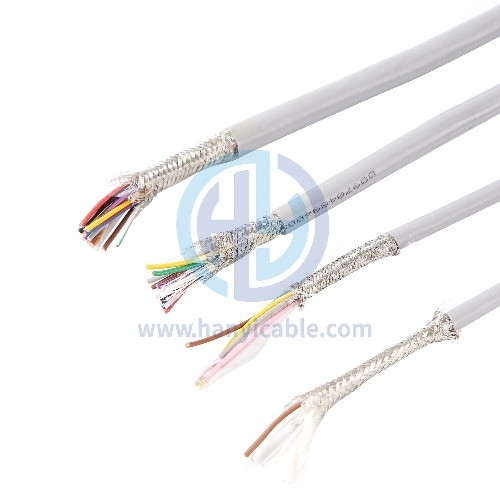

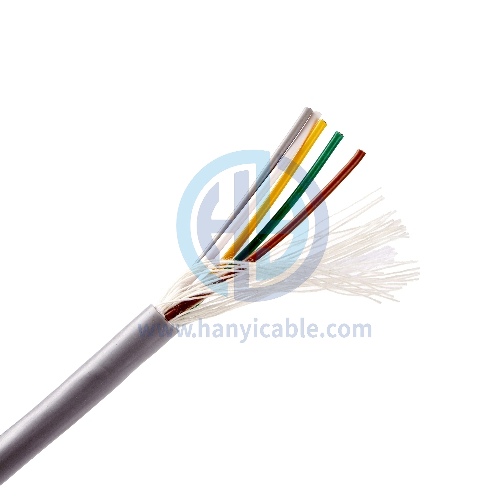

UL2516 is a flexible multi-conductor control and instrumentation cable designed for applications requiring excellent flexibility and EMI protection. It features finely stranded tinned copper conductors insulated with PVC and covered by a PVC jacket. The cable includes an overall aluminum foil shield with a tinned copper drain wire for enhanced protection against electromagnetic interference, ensuring reliable signal transmission in industrial automation, data communication, and control systems.
Rated for 300 volts and operating up to 80°C, UL2516 is ideal for flexible wiring in machinery, robotics, and instrumentation equipment, where frequent bending and movement occur. It complies with UL, CSA, and RoHS standards, guaranteeing safety and environmental compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor Material | Finely Stranded Tinned Copper |
| Number of Conductors | 2 to 61 cores |
| Conductor Size (AWG) | 28 AWG to 16 AWG |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | Approx. 0.4 mm (varies by conductor size) |
| Jacket Material | PVC, Flame Retardant |
| Jacket Thickness | Approx. 0.8 mm (varies by cable size) |
| Shielding | Aluminum Foil Shield + Tinned Copper Drain Wire |
| Voltage Rating | 300 V |
| Temperature Rating | 80°C (176°F) |
| Minimum Bend Radius | 6 × cable diameter |
| Cable Colors | Grey standard; custom colors available |
| Standards Compliance | UL2516, CSA, RoHS |
Available Configurations (Typical Examples)
| No. of Conductors | AWG Size | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| 2 | 28 | 4.3 | 33 |
| 4 | 26 | 5.3 | 55 |
| 7 | 24 | 6.8 | 96 |
| 12 | 22 | 8.9 | 140 |
| 19 | 20 | 10.6 | 215 |
| 37 | 18 | 13.7 | 365 |
Note: OD = Outer Diameter
Typical Applications
Flexible wiring for industrial automation and robotics
Instrumentation and control systems
Data transmission in electronic equipment
Audio and video signal cables
Machinery and mobile equipment wiring
Advantages
High flexibility suitable for dynamic and moving applications
Effective EMI protection with aluminum foil shield and drain wire
Durable flame retardant PVC insulation and jacket
Resistant to oils, chemicals, and abrasion
Wide range of conductor counts and sizes
305m, 610m Coil/Drum upon request
