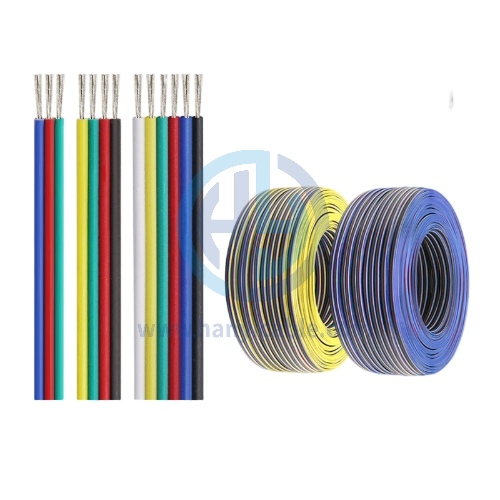

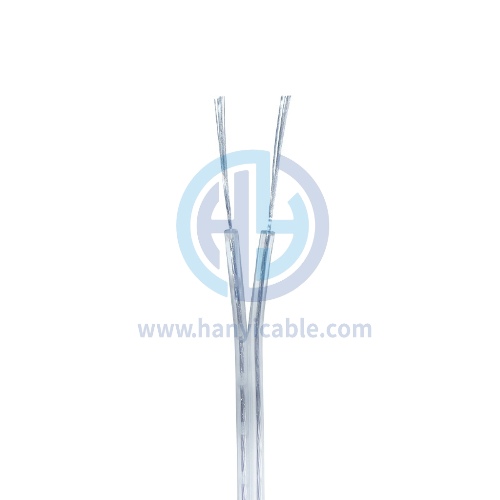

UL2468 Multi-Conductor PVC Insulated Flexible Control Cable – Shielded/Unshielded, 300V, 80°C | HANYI Cable
Detailed Description
UL2468 is a high-flexibility multi-conductor control cable widely used in industrial automation, instrumentation, and communication systems. It features finely stranded tinned copper conductors for superior conductivity and flexibility, combined with durable PVC insulation and jacket. The cable is available in shielded and unshielded options; the shielded version includes an aluminum foil shield with a tinned copper drain wire, which effectively reduces electromagnetic interference (EMI) and ensures signal integrity in sensitive electronic applications.
Rated for 300 volts and an operating temperature up to 80°C, UL2468 is designed for repeated flexing and continuous movement environments, making it suitable for robotic systems, automated machinery, and mobile equipment wiring. This cable meets UL, CSA, and RoHS standards for safety and environmental compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor Material | Finely Stranded Tinned Copper |
| Number of Conductors | 2 to 61 cores |
| Conductor Size (AWG) | 28 AWG to 16 AWG |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | Approx. 0.4 mm (varies by conductor size) |
| Jacket Material | PVC, Flame Retardant |
| Jacket Thickness | Approx. 0.8 mm (varies by cable size) |
| Shielding | Optional Aluminum Foil Shield + Tinned Copper Drain Wire |
| Voltage Rating | 300 V |
| Temperature Rating | 80°C (176°F) |
| Minimum Bend Radius | 6 × cable diameter |
| Cable Colors | Grey standard; custom colors available |
| Standards Compliance | UL2468, CSA, RoHS |
Available Configurations (Typical Examples)
| No. of Conductors | AWG Size | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| 2 | 28 | 4.2 | 32 |
| 4 | 26 | 5.2 | 54 |
| 7 | 24 | 6.7 | 95 |
| 12 | 22 | 8.7 | 138 |
| 19 | 20 | 10.5 | 210 |
| 37 | 18 | 13.5 | 360 |
Note: OD = Outer Diameter
Typical Applications
Robotics and automated machinery wiring
Industrial control and instrumentation
Mobile and moving equipment wiring
Audio, video, and data transmission systems
Factory automation and process control
Advantages
Superior flexibility for dynamic applications
Excellent EMI shielding in shielded versions
High resistance to oil, chemicals, abrasion, and mechanical stress
Flame retardant PVC jacket enhances safety
Wide variety of conductor counts and sizes for diverse applications
305m, 610m Coil/Drum upon request
