UL2464 Multi-Conductor PVC Insulated Control Cable – Shielded/Unshielded, 300V, 80°C | HANYI Cable
Detailed Description

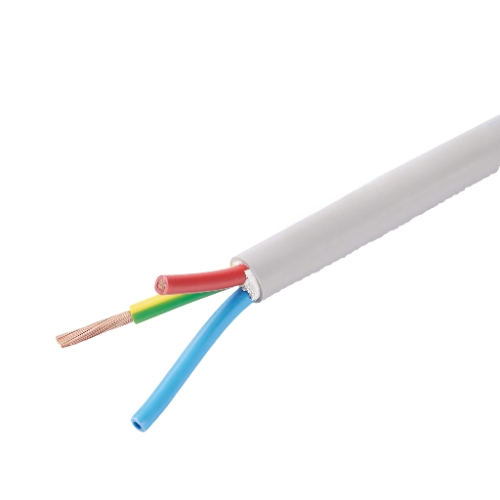

UL2464 is a flexible and reliable multi-conductor control cable widely used in industrial, commercial, and electronic equipment applications. It features stranded tinned copper conductors for excellent conductivity and corrosion resistance. The conductors are insulated with durable PVC insulation which provides good mechanical protection, flame retardance, and resistance to oils, chemicals, and abrasion.

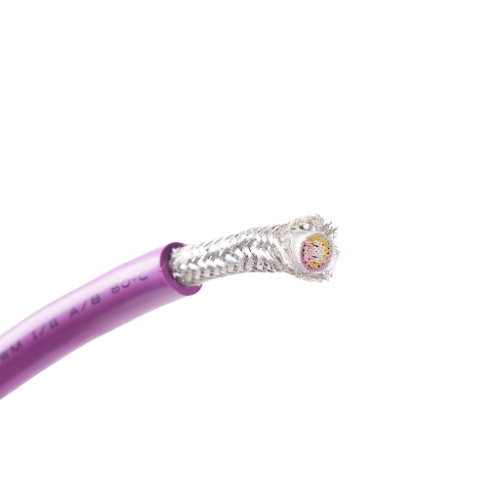

This cable comes in shielded (foil shield with drain wire) or unshielded versions, allowing for effective reduction of electromagnetic interference (EMI) in signal transmission. Rated for 300 volts and an operating temperature up to 80°C, UL2464 is ideal for control, instrumentation, data transmission, and audio applications. It meets UL, CSA, and RoHS standards, ensuring safety and environmental compliance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Conductor Material | Stranded Tinned Copper |
| Number of Conductors | 2 to 61 cores |
| Conductor Size (AWG) | 28 AWG to 16 AWG |
| Insulation Material | Polyvinyl Chloride (PVC) |
| Insulation Thickness | Approx. 0.4 mm (varies by conductor size) |
| Jacket Material | PVC, Flame Retardant |
| Jacket Thickness | Approx. 0.8 mm (varies by cable size) |
| Shielding | Optional Aluminum Foil Shield + Tinned Copper Drain Wire |
| Voltage Rating | 300 V |
| Temperature Rating | 80°C (176°F) |
| Minimum Bend Radius | 6 × cable diameter |
| Cable Colors | Grey standard; other colors available on request |
| Standards Compliance | UL2464, CSA, RoHS |
Available Configurations (Typical Examples)
| No. of Conductors | AWG Size | Approx. OD (mm) | Approx. Weight (kg/km) |
|---|---|---|---|
| 2 | 28 | 4.0 | 30 |
| 4 | 26 | 5.0 | 50 |
| 7 | 24 | 6.5 | 90 |
| 12 | 22 | 8.5 | 130 |
| 19 | 20 | 10.0 | 200 |
| 37 | 18 | 13.0 | 350 |
Note: OD = Outer Diameter
Typical Applications
Control and instrumentation wiring in industrial automation
Internal wiring for computers and office equipment
Audio and video signal transmission
Data communication cables in commercial buildings
Process control systems in factories and plants
Advantages
Excellent EMI protection in shielded versions
High flexibility and easy installation
Good resistance to oil, chemicals, and abrasion
Flame retardant jacket enhances safety
Wide conductor size and core count options
305m, 610m Coil/Drum upon request
