UL1185 PVC Insulated Shielded Hook-Up Wire – 300V, 105°C, Stranded Tinned Copper Conductor | HANYI Cable
Detailed Description

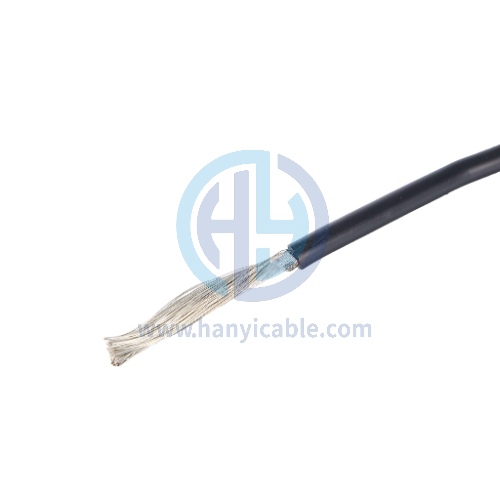

The UL1185 shielded hook-up wire is a high-quality single-conductor cable designed for internal wiring of electronic and electrical equipment where low voltage, flexibility, and EMI/RFI shielding are required.
It features a stranded tinned copper conductor for excellent conductivity and corrosion resistance, insulated with PVC for durability and electrical insulation. A tinned copper braid shield provides superior protection against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable signal transmission.
With a 300V voltage rating and 105°C temperature rating, UL1185 is widely used in industrial control systems, instrumentation, sensors, audio equipment, and communication devices.
Key Features
Rated voltage: 300V
Rated temperature: 105°C
Conductor: Stranded tinned copper (per UL 758, UL 1581)
Insulation: PVC, flame retardant, moisture resistant
Shield: Tinned copper braid (85% coverage typical)
Standard compliance: UL1185, RoHS compliant
Available colors: Black, red, white, and custom colors
Applications: Internal wiring for electronic equipment, EMI-sensitive devices, instrumentation
Technical Specifications
| Parameter | Description |
|---|---|
| Conductor Material | Stranded tinned copper |
| Conductor Size | 28–16 AWG |
| Insulation Material | PVC (Polyvinyl Chloride) |
| Shield | Tinned copper braid, ~85% coverage |
| Voltage Rating | 300V |
| Temperature Rating | -20°C to +105°C |
| Flame Test | UL VW-1 |
| Standards | UL 758, UL 1581, RoHS |
UL Hook-Up Wire Product Range:
Hook-Up Wire Model Comparison Table
| Model | Voltage Rating | Temperature Rating | Conductor Type | Insulation Material | Shielding Option | Typical AWG Range | Applications |
|---|---|---|---|---|---|---|---|
| UL1007 | 300V | 80°C | Stranded or solid tinned copper | PVC | No | 30–16 AWG | Internal wiring of appliances, electronics, lighting |
| UL1015 | 600V | 105°C | Stranded tinned copper | PVC | No | 26–10 AWG | Industrial equipment, control panels, power supply wiring |
| UL1185 | 300V | 80°C | Stranded tinned copper | PVC | Yes (Foil + Drain Wire) | 28–18 AWG | Signal transmission, instrumentation, audio equipment |
| UL1569 | 300V | 105°C | Stranded or solid tinned/bare copper | PVC | No | 26–16 AWG | Internal wiring for appliances, lighting, control panels |
| UL1571 | 30V | 80°C | Solid or stranded tinned copper | PVC | No | 32–16 AWG | Low-voltage electronics, signal circuits, PCB wiring |
Summary
UL1007 & UL1569: Both 300V rated, but UL1569 has higher temperature resistance (105°C).
UL1015: Heavy-duty, 600V & 105°C, for industrial power wiring.
UL1185: Shielded cable for signal and data transmission.
UL1571: Low-voltage 30V wire for electronics and PCB connections.
305m, 610m Coil/Drum upon request
