UL1015 PVC Insulated Hook-Up Wire – 600V, 105°C, Stranded or Solid Copper Conductor | HANYI Cable

UL1015 is a PVC insulated hook-up wire designed for applications requiring 600V voltage resistance and 105°C heat resistance. It is ideal for industrial equipment wiring, control panels, appliances, and machinery where durability, flame retardancy, and flexibility are required.
Description Package Information Inquiry

Detailed Description

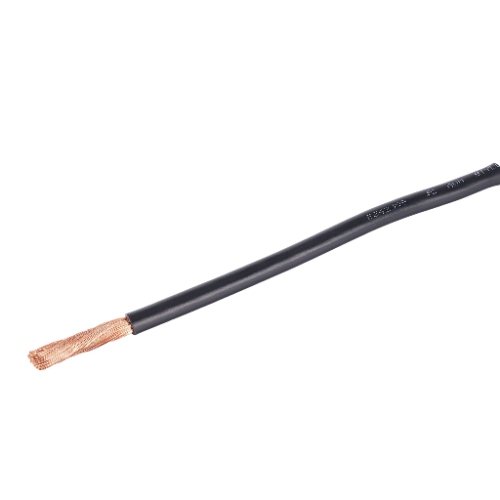

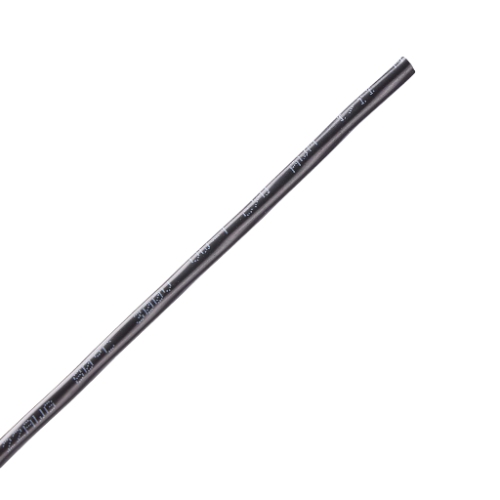

The UL1015 hook-up wire is a high-performance single-core cable designed for internal wiring in electrical and electronic equipment. It features a tinned or bare copper conductor for superior conductivity and corrosion resistance, insulated with PVC for durability, flexibility, and excellent electrical insulation.

With a 600V voltage rating and 105°C temperature rating, UL1015 is suitable for industrial control panels, appliances, lighting systems, machinery, and electronic devices. Its PVC insulation is flame-retardant and resistant to oils, moisture, acids, alkalis, and abrasion, ensuring reliable performance in demanding environments.

UL1015 complies with UL Standards for safety and performance, making it widely used in OEM manufacturing, industrial installations, and maintenance projects.


Key Features

  • Rated voltage: 600V

  • Rated temperature: 105°C

  • Conductor: Stranded or solid tinned/bare copper (per UL 758, UL 1581)

  • Insulation: PVC, flame retardant, moisture resistant

  • Standard compliance: UL1015, RoHS compliant

  • Available colors: Black, red, blue, yellow, green, white, and custom colors

  • Applications: Internal wiring of industrial equipment, appliances, control panels, and lighting


Technical Specifications

ParameterDescription
Conductor MaterialTinned or bare copper
Conductor StructureSolid or stranded
Conductor Size30–10 AWG
Insulation MaterialPVC (Polyvinyl Chloride)
Voltage Rating600V
Temperature Rating-20°C to +105°C
Flame TestUL VW-1
StandardsUL 758, UL 1581, RoHS


305m, 610m Coil/Drum upon request
