Low Smoke Halogen Free Screened Control Cable – CU/XLPE/PE/CWB| HANYI Cable
Detailed Description

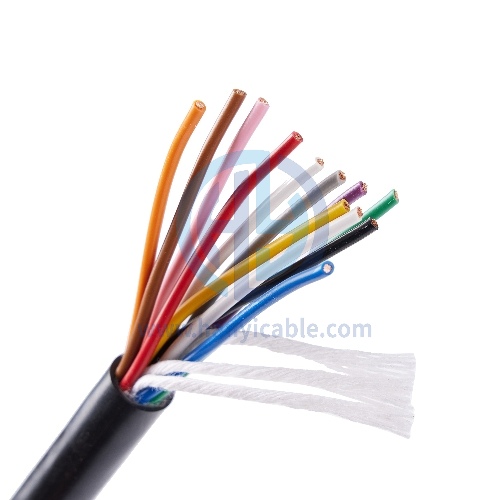

This Low Smoke Halogen Free (LSZH) Screened Control Cable with a CU/XLPE/PE/CWB construction is designed for control, instrumentation, and signal transmission in fixed installations where fire safety and minimal smoke/toxic emissions are critical.
The copper conductor (CU) ensures excellent electrical conductivity, while the cross-linked polyethylene (XLPE) insulation provides outstanding thermal and mechanical performance. The polyethylene (PE) sheath offers robust protection against moisture, abrasion, and chemicals. A copper wire braid (CWB) screen ensures effective electromagnetic interference (EMI) shielding, guaranteeing stable signal transmission in industrial environments.
This cable is widely used in power plants, automation systems, transportation infrastructure, and public buildings where safety, low smoke, and halogen-free performance are essential.
Key Features
Low Smoke Halogen Free (LSZH) for enhanced fire safety
Copper conductor (CU) for high conductivity and reliability
XLPE insulation for high temperature and electrical resistance
PE sheath for durability and moisture protection
Copper Wire Braid (CWB) screen for EMI shielding
Complies with IEC 60332, IEC 60754, IEC 61034 standards
Resistant to oils, chemicals, and UV (depending on sheath grade)
Technical Specifications
| Parameter | Description |
|---|---|
| Conductor | Copper, stranded, Class 5 (IEC 60228) |
| Insulation | XLPE (Cross-linked Polyethylene) |
| Screen | Copper Wire Braid (CWB) |
| Sheath | PE (Polyethylene), LSZH |
| Voltage Rating | 300/500 V or 450/750 V (optional 0.6/1 kV) |
| Temperature Range | -15°C to +90°C (fixed installation) |
| Fire Performance | IEC 60332-1 flame retardant, IEC 60754 halogen free, IEC 61034 low smoke |
| Standards | IEC, BS, EN equivalents |
| Core Count | 2–61 cores |
| Conductor Size | 0.5 mm² – 16 mm² |
5000m, 1000m, 100m upon request
