EV DC Connection Cable – High Power Electric Vehicle Charging Cable With Shield or WIthout Shield | HANYI Cable
High-current EV DC charging cable for fast charging stations. IEC 62893 compliant, UV and weather resistant, 25–120 mm² copper conductors.
Description
Package Information
Inquiry
Detailed Description:
HANYI EV DC Connection Cable is engineered for high-power DC fast charging applications, such as CCS Combo 1/2, CHAdeMO, and GB/T charging systems.

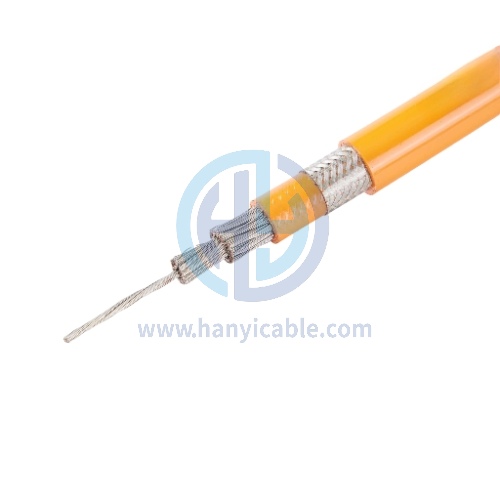

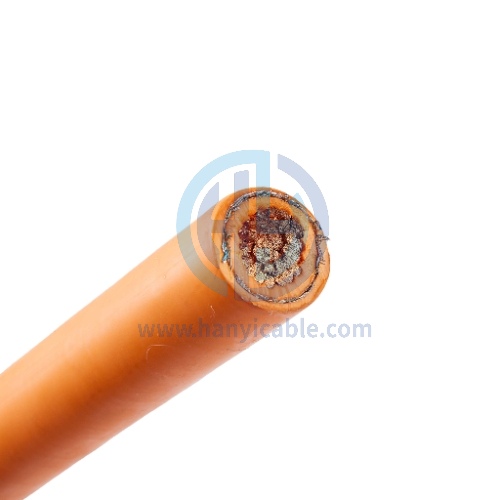

It features finely stranded tinned copper conductors for superior conductivity, XLPE or TPE insulation for high thermal resistance, and a robust outer sheath for mechanical protection.
The cable meets IEC 62893 and EN 50620 standards, providing excellent flexibility, UV resistance, and weatherproof performance, ensuring safe and efficient power transfer in both indoor and outdoor charging installations.
Technical Specifications:
| Parameter | Value |
|---|---|
| Voltage Rating | 1000 V DC |
| Conductor | Fine-stranded tinned copper |
| Insulation | XLPE or TPE |
| Screen | Tinned Copper Braid or Non Shield |
| Sheath | XLPE or TPE, UV and oil resistant |
| Cross Section | 0.5–150 mm² |
| Temperature Range | –40°C to +90°C |
| Standards | IEC 62893, EN 50620, UL 62 |
| Flame Rating | IEC 60332-1, RoHS compliant |
Applications:
DC fast charging stations
Commercial EV charging hubs
Public transport charging points (buses, trucks)

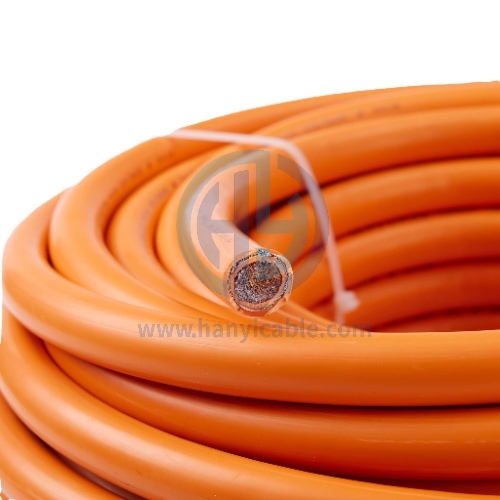

500m/ 1000m/ drum
