Detailed Description:

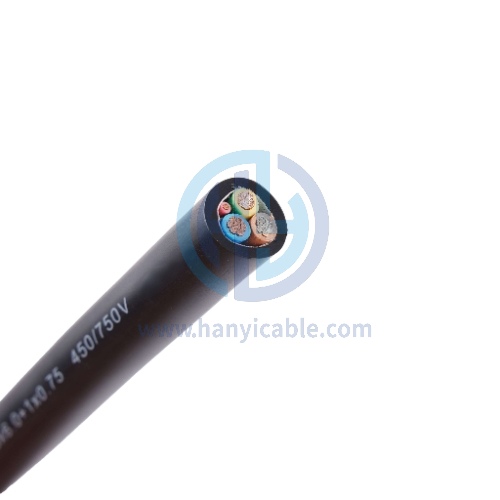

The H07BZ5-F cable is a robust, halogen-free flexible cable designed for power supply in environments where fire safety and low smoke emissions are critical.
It features Class 5 fine-stranded copper conductors according to IEC 60228, insulated with a special cross-linked halogen-free rubber compound. This construction provides high flexibility, resistance to mechanical stress, and enhanced safety in case of fire, as it does not emit toxic halogen gases.
Compliant with HD 22.12 and IEC 60502 standards, it is widely used in public buildings, transport systems, industrial machinery, and emergency power circuits. Its LSZH (Low Smoke Zero Halogen) sheath ensures compliance with modern fire safety regulations in Europe and other markets.
Technical Specifications:
| Parameter | Value |
|---|---|
| Voltage Rating | 450/750 V |
| Conductor | Fine-stranded bare copper, Class 5 (IEC 60228) |
| Insulation | Cross-linked halogen-free rubber compound |
| Sheath | Halogen-free thermosetting compound, LSZH |
| Core Count | 1–5 cores |
| Cross Section | 1.5–35 mm² |
| Temperature Range | –40°C to +90°C (fixed) / –25°C to +90°C (flexing) |
| Minimum Bend Radius | 6× outer diameter (flexing) |
| Standards | HD 22.12, IEC 60228, IEC 60332-3, IEC 60754, IEC 61034 |
| Flame Rating | IEC 60332-1 and IEC 60332-3-24 |
| Smoke Emission | Low smoke, zero halogen (LSZH) |
Applications:
Emergency lighting and fire alarm systems
Power circuits in public buildings (airports, hospitals, schools)
Transport systems (rail, metro, marine)
Industrial control panels and switchboards
High-risk fire environments requiring LSZH cables
Summary:
Heavy-duty, halogen-free, flame-retardant flexible cable for industrial and public installations. Suitable for fixed or flexible connections in high-temperature and fire-risk environments.
500m/ 1000m/ drum
