LiYCY (TP) Flexible PVC Control and Signal Cable – Twisted Pair, Screened, DIN Colour Code | HANYI Cable
Detailed Description

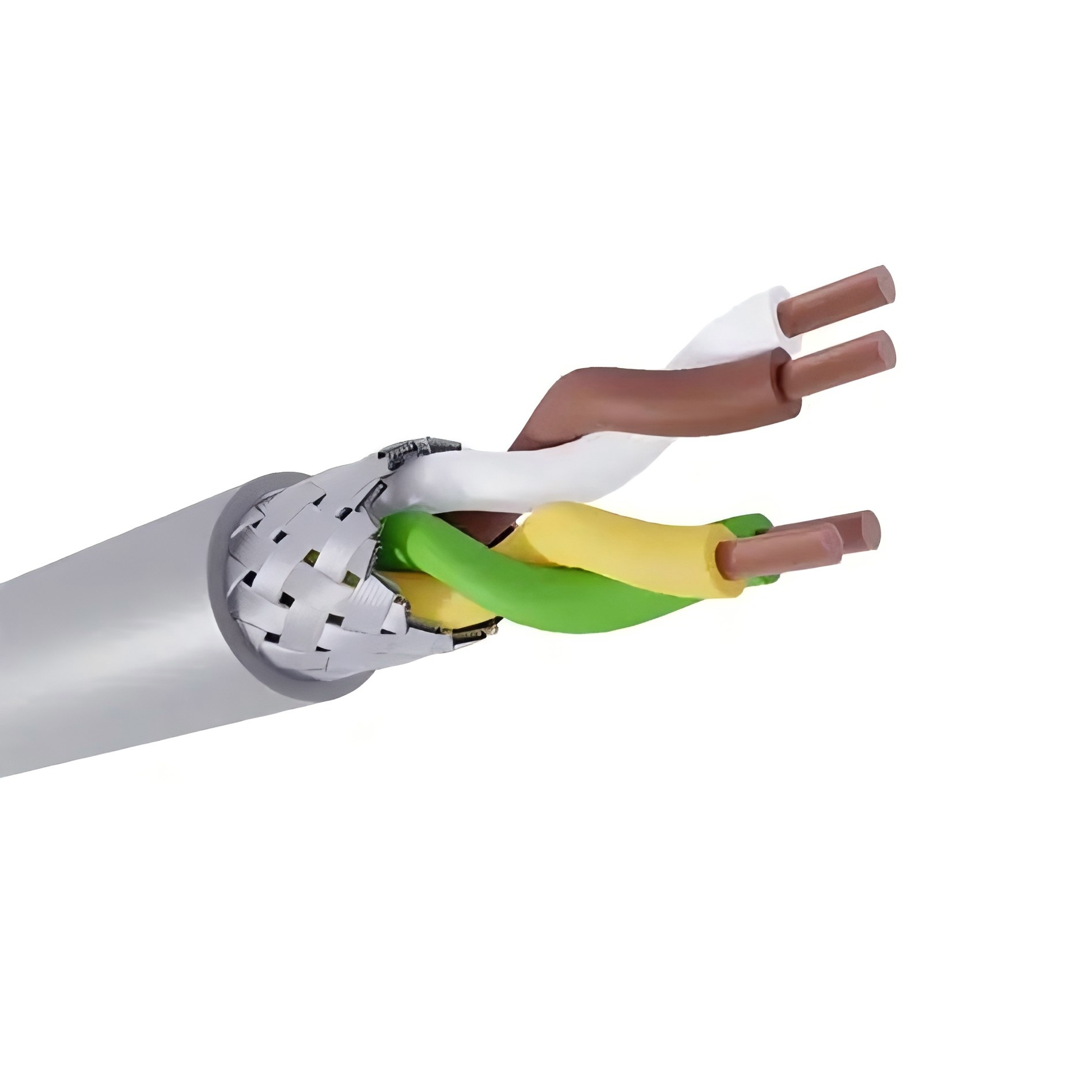

The LiYCY (TP) cable is a flexible, twisted-pair screened data and control cable designed for low-frequency applications requiring high resistance to electromagnetic interference (EMI) and crosstalk between cores. It features fine-stranded copper conductors insulated with PVC, with cores paired and twisted to improve signal integrity over long distances.
Each core is identified according to DIN 47100 color coding. The pairs are individually twisted, then collectively shielded with a high-coverage tinned copper braid. This structure ensures reliable data transmission even in electrically noisy industrial environments.
Key Features
Flexible PVC-insulated cable with twisted pair structure for reduced crosstalk
Tinned copper braid shield for EMC protection
Color-coded cores according to DIN 47100
Excellent signal integrity over extended cable runs
Space-saving small outer diameter
Flame retardant according to IEC 60332-1-2
RoHS-compliant
Technical Specifications
Conductor: Fine-stranded bare copper, Class 5 (IEC 60228)
Insulation: PVC, DIN 47100 color-coded cores
Pairing: Twisted pairs for improved signal integrity
Screening: Tinned copper braid, optical coverage ≥ 85%
Sheath: PVC, grey (RAL 7001)
Core Count: 2×2, 3×2, 4×2, up to 20×2 pairs
Conductor Sizes: 0.14 mm², 0.25 mm², 0.34 mm², 0.5 mm², 0.75 mm², 1.0 mm²
Voltage Rating: 300 V / 500 V
Test Voltage: 1.5 kV
Temperature Range:
Fixed: −40 °C to +80 °C
Flexing: −5 °C to +70 °C
Bending Radius:
Fixed: ≥ 6× outer diameter
Flexing: ≥ 12× outer diameter
Standards: DIN VDE 0812, IEC 60228, IEC 60332-1-2
Typical Applications
Data and control lines in EMI-sensitive environments
Audio, instrumentation, and measurement systems
Process control in industrial automation
Office and medical equipment wiring
Low-frequency data communication networks
Which Cable to Choose – LiYY, LiYCY or LiYCY (TP)?
Comparison Table – LiYY vs LiYCY vs LiYCY (TP)
| Feature / Model | LiYY | LiYCY | LiYCY (TP) |
|---|---|---|---|
| Core Structure | Multi-core, straight lay | Multi-core, straight lay | Multi-core, twisted pairs |
| Shielding | None | Tinned copper braid, optical coverage ≥ 85% | Tinned copper braid, optical coverage ≥ 85% |
| EMC Protection | No | Yes | Yes – plus reduced crosstalk |
| Interference Resistance | Low | High (against external EMI) | Very high (against EMI and internal crosstalk) |
| Typical Conductor Sizes | 0.14 mm² – 1.0 mm² | 0.14 mm² – 1.0 mm² | 0.14 mm² – 1.0 mm² |
| Core Identification | DIN 47100 | DIN 47100 | DIN 47100 |
| Outer Sheath | PVC, grey (RAL 7001) | PVC, grey (RAL 7001) | PVC, grey (RAL 7001) |
| Voltage Rating | 300/500 V | 300/500 V | 300/500 V |
| Temperature Range (Fixed) | −40 °C to +80 °C | −40 °C to +80 °C | −40 °C to +80 °C |
| Temperature Range (Flexing) | −5 °C to +70 °C | −5 °C to +70 °C | −5 °C to +70 °C |
| Applications | General control & signal | Control & signal with EMI protection | Data/control with EMI + crosstalk reduction |
| Main Advantages | Economical, easy to install | Strong EMI shielding | Strong EMI shielding + improved signal integrity |
5000m, 1000m, 100m upon request
