LiYY Flexible PVC Control and Signal Cable – Multi-Core, DIN Colour Code | HANYI Cable
Detailed Description

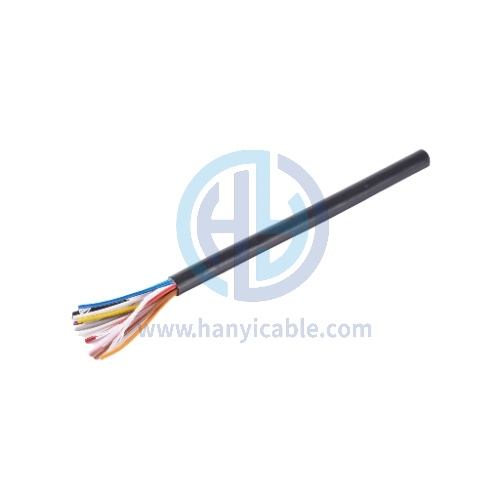

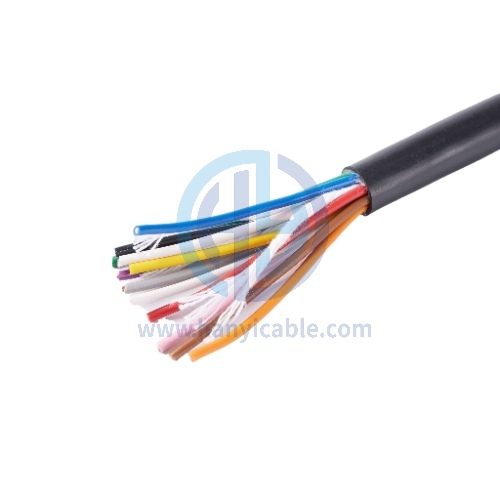

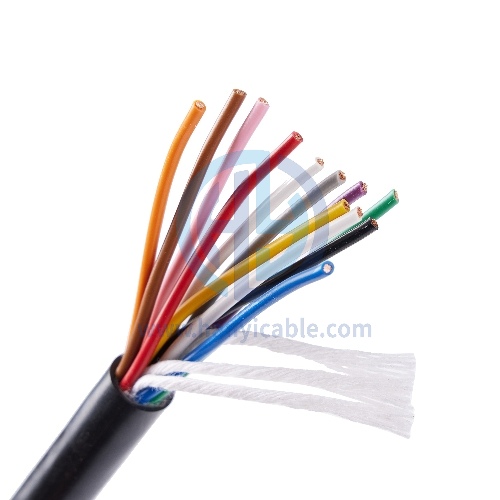

The LiYY cable is a high-quality, flexible, unscreened data and control cable designed for low-frequency applications. Constructed with fine-stranded copper conductors and PVC insulation, each core is color-coded according to DIN 47100 for easy identification. The outer sheath is made from durable PVC, offering excellent flexibility, compact diameter, and smooth handling in tight installation spaces.
LiYY cables are widely used in electronics, signal and data transmission, control panels, measuring devices, office machines, medical equipment, and industrial automation systems. Thanks to their small bending radius and light weight, they are ideal for applications where space is limited and mobility is required.
Cable Shielding and Twisted Pair Comparison
Comparison Table – LiYY vs LiYCY vs LiYCY (TP)
| Feature / Model | LiYY | LiYCY | LiYCY (TP) |
|---|---|---|---|
| Core Structure | Multi-core, straight lay | Multi-core, straight lay | Multi-core, twisted pairs |
| Shielding | None | Tinned copper braid, optical coverage ≥ 85% | Tinned copper braid, optical coverage ≥ 85% |
| EMC Protection | No | Yes | Yes – plus reduced crosstalk |
| Interference Resistance | Low | High (against external EMI) | Very high (against EMI and internal crosstalk) |
| Typical Conductor Sizes | 0.14 mm² – 1.0 mm² | 0.14 mm² – 1.0 mm² | 0.14 mm² – 1.0 mm² |
| Core Identification | DIN 47100 | DIN 47100 | DIN 47100 |
| Outer Sheath | PVC, grey (RAL 7001) | PVC, grey (RAL 7001) | PVC, grey (RAL 7001) |
| Voltage Rating | 300/500 V | 300/500 V | 300/500 V |
| Temperature Range (Fixed) | −40 °C to +80 °C | −40 °C to +80 °C | −40 °C to +80 °C |
| Temperature Range (Flexing) | −5 °C to +70 °C | −5 °C to +70 °C | −5 °C to +70 °C |
| Applications | General control & signal | Control & signal with EMI protection | Data/control with EMI + crosstalk reduction |
| Main Advantages | Economical, easy to install | Strong EMI shielding | Strong EMI shielding + improved signal integrity |
Key Features
Flexible PVC-insulated multi-core cable
Color-coded cores according to DIN 47100
Small outer diameter, even for large core counts
Easy to install in tight spaces
Suitable for fixed and limited flexible applications
Flame retardant according to IEC 60332-1-2
RoHS-compliant
Technical Specifications
Conductor: Fine-stranded bare copper, Class 5 (IEC 60228)
Insulation: PVC, color-coded per DIN 47100
Sheath: PVC, grey (RAL 7001)
Core Count: 2 to 40 cores
Conductor Sizes: 0.14 mm², 0.25 mm², 0.34 mm², 0.5 mm², 0.75 mm², 1.0 mm²
Voltage Rating: 300 V / 500 V
Test Voltage: 1.5 kV
Temperature Range:
Fixed: −40 °C to +80 °C
Flexing: −5 °C to +70 °C
Bending Radius:
Fixed: ≥ 4× outer diameter
Flexing: ≥ 10× outer diameter
Standards: DIN VDE 0812, IEC 60228, IEC 60332-1-2
Typical Applications
Control and signal circuits
Electronic equipment wiring
Measurement and instrumentation systems
Computer peripherals and office equipment
Light industrial automation
Audio and data transmission (low frequency)
5000m, 1000m, 100m upon request
